Transformation - Rule Types

Type

Description

SAP

Metadata API

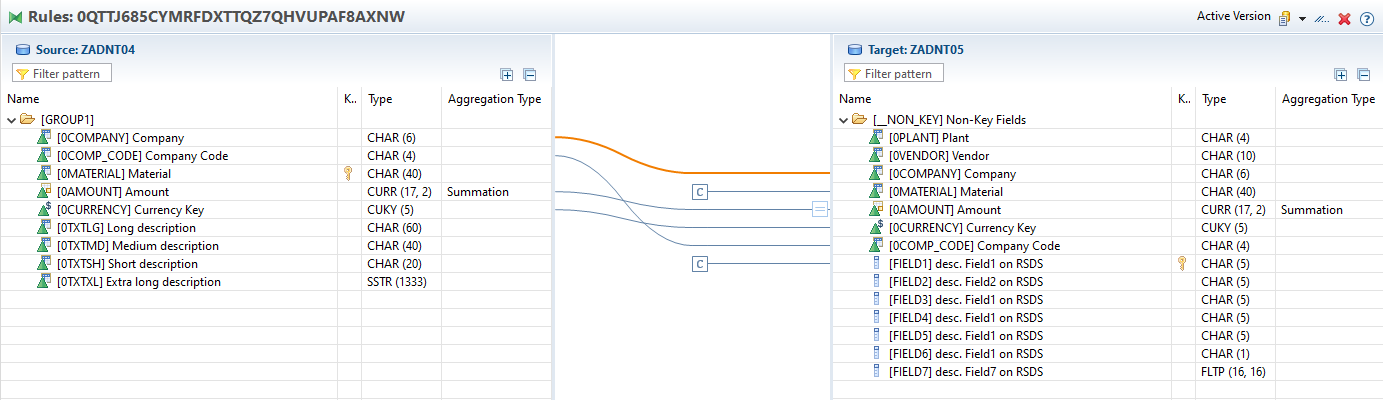

DIRECT

Direct Mapping


XML
<parent xsi:type="Transformation" id="0QTTJ685CYMRFDXTTQZ7QHVUPAF8AXNW|TRFN">
    <node>
      <id>1|0QTTJ685CYMRFDXTTQZ7QHVUPAF8AXNW|TRFN</id>
      <sapRuleID>1</sapRuleID>
      <type>DIRECT</type>
    </node>
    ...
</parent>

TIME

Direct Mapping of Time Characteristics


XML
<parent xsi:type="Transformation" id="0S8WUA03KXQWYLOVZSE0R0N92O2NDU5B|TRFN">
    ...
    <node>
      <id>3|0S8WUA03KXQWYLOVZSE0R0N92O2NDU5B|TRFN</id>
      <sapRuleID>3</sapRuleID>
      <type>TIME</type>
    </node>
    ...
</parent>

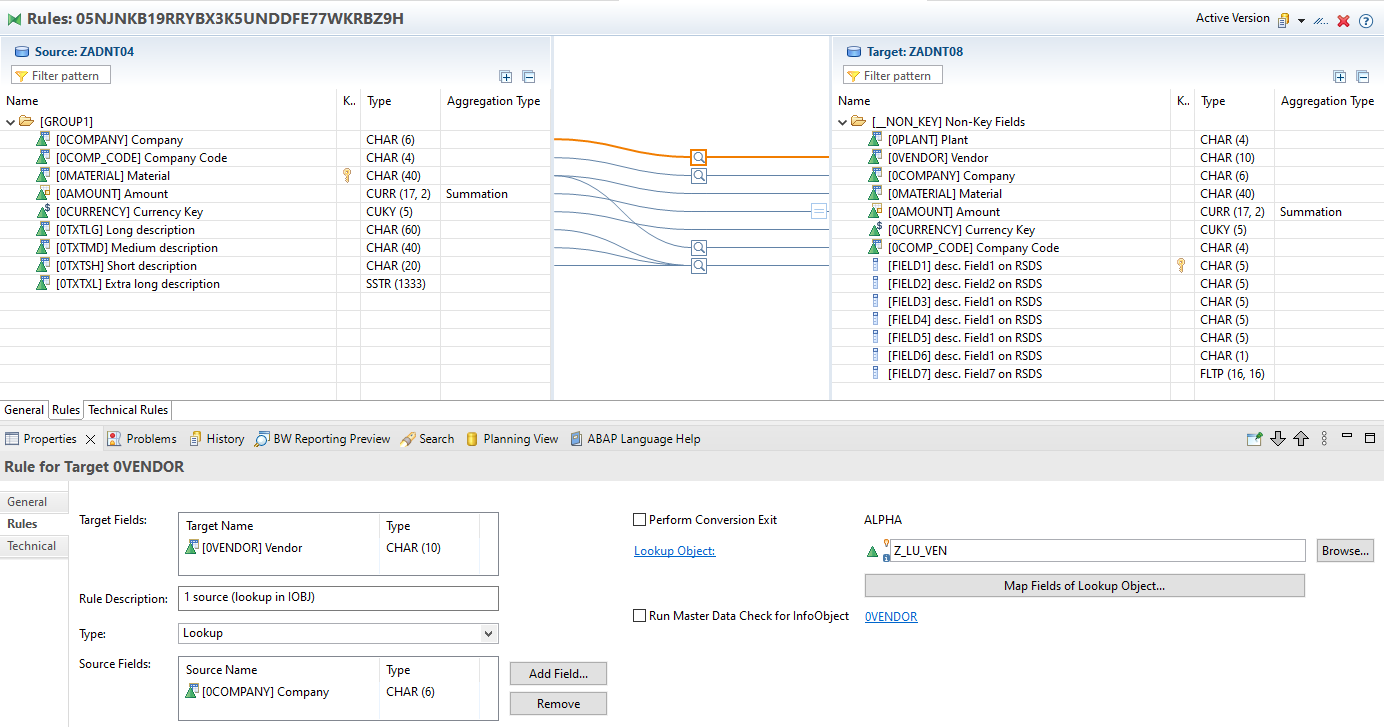

MASTER

Look-Up on InfoObjects


XML
<parent xsi:type="Transformation" id="05NJNKB19RRYBX3K5UNDDFE77WKRBZ9H|TRFN">
    ...
    <node>
      <id>8|05NJNKB19RRYBX3K5UNDDFE77WKRBZ9H|TRFN</id>
      <sapRuleID>8</sapRuleID>
      <type>MASTER</type>
      <value>Z_LU_VEN|IOBJ</value>
    </node>
    ...
</parent>

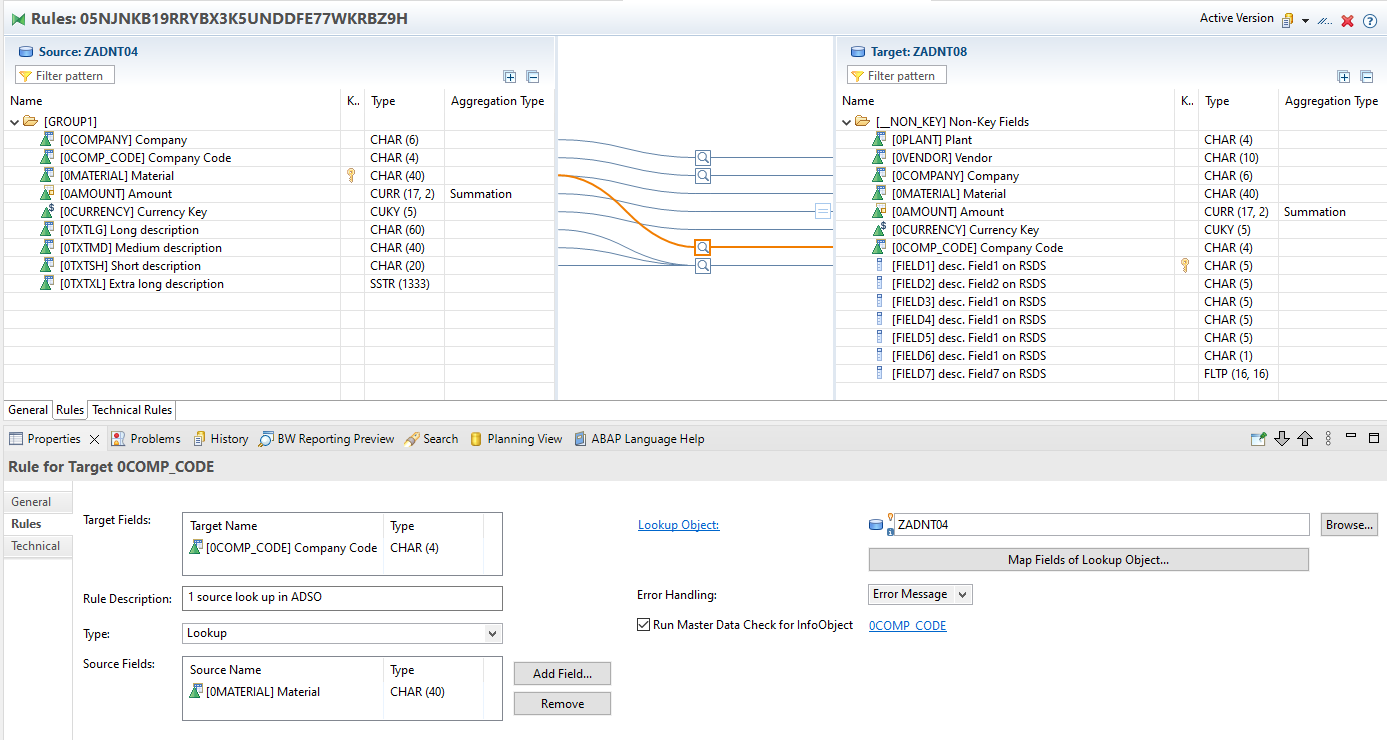

ADSO

Look-Up on Advanced Data Store Objects


XML
<parent xsi:type="Transformation" id="05NJNKB19RRYBX3K5UNDDFE77WKRBZ9H|TRFN">
    ...
    <node>
      <id>5|05NJNKB19RRYBX3K5UNDDFE77WKRBZ9H|TRFN</id>
      <sapRuleID>5</sapRuleID>
      <type>ADSO</type>
      <value>ZADNT04|ADSO</value>
    </node>
    ...
</parent>

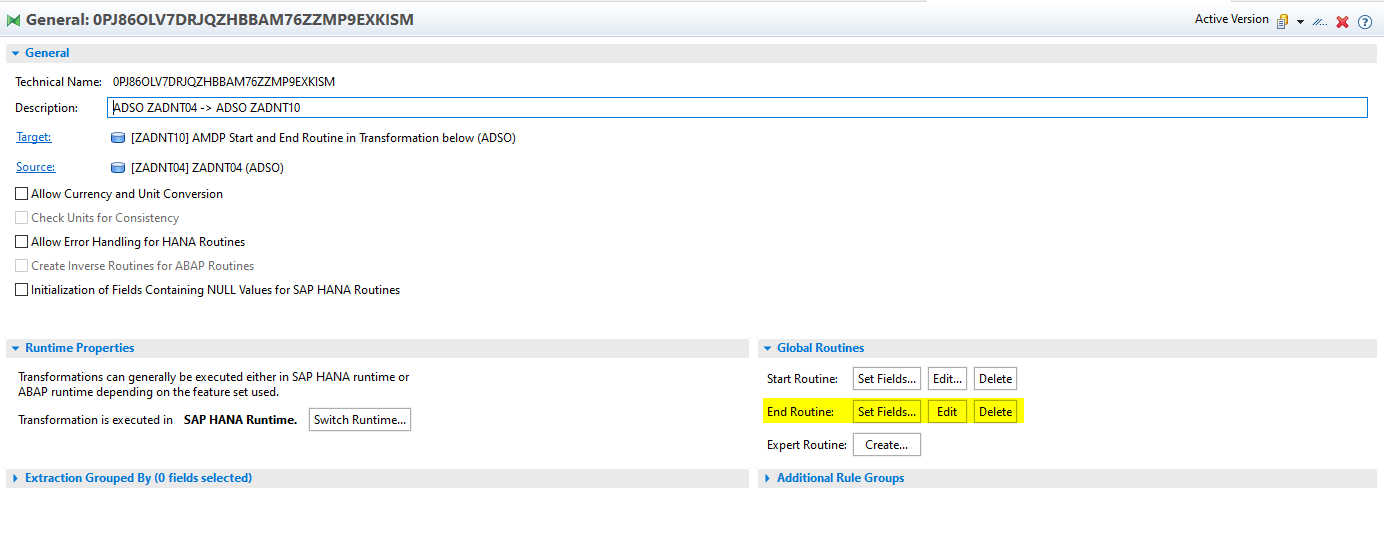

END

End Routine


XML
<parent xsi:type="Transformation" id="0PJ86OLV7DRJQZHBBAM76ZZMP9EXKISM|TRFN">
    ...
    <node>
      <id>12|0PJ86OLV7DRJQZHBBAM76ZZMP9EXKISM|TRFN</id>
      <sapRuleID>12</sapRuleID>
      <type>END</type>
    </node>
    ...
</parent>

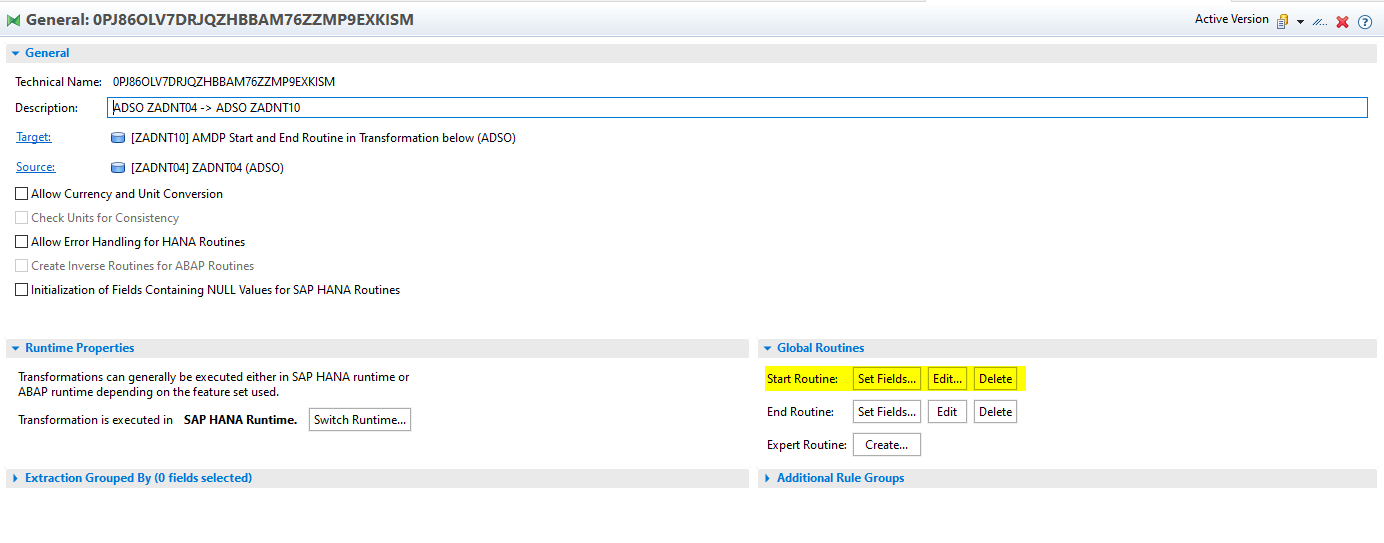

START

Start Routine


XML
<parent xsi:type="Transformation" id="0B1W7ZQLRVH1J9XR9Y36A4ZLDBYUYIAF|TRFN">
    <node>
      <id>1|0B1W7ZQLRVH1J9XR9Y36A4ZLDBYUYIAF|TRFN</id>
      <sapRuleID>1</sapRuleID>
      <type>EXPERT</type>
    </node>
</parent>

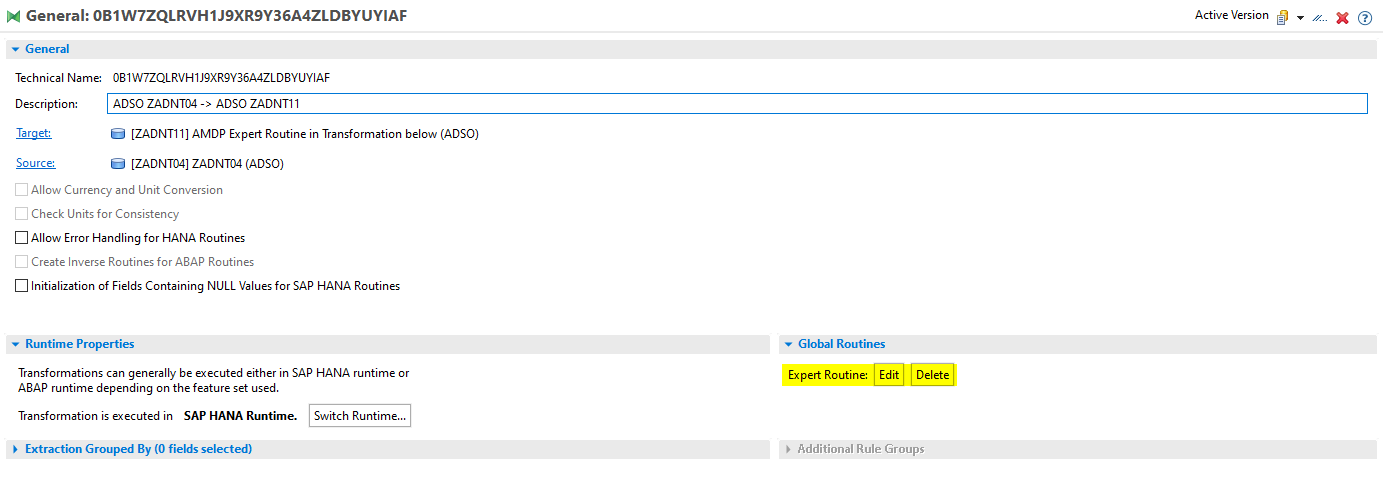

EXPERT

Expert Routine


XML
<parent xsi:type="Transformation" id="0PJ86OLV7DRJQZHBBAM76ZZMP9EXKISM|TRFN">
    ...
    <node>
      <id>11|0PJ86OLV7DRJQZHBBAM76ZZMP9EXKISM|TRFN</id>
      <sapRuleID>11</sapRuleID>
      <type>START</type>
    </node>
    ...
</parent>

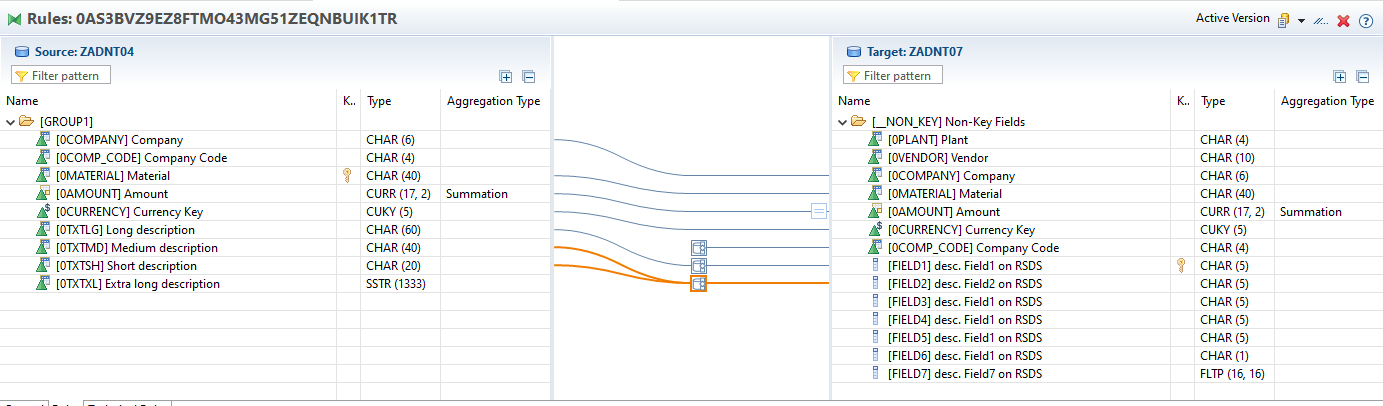

ROUTINE

Field Routine


XML
<parent xsi:type="Transformation" id="0AS3BVZ9EZ8FTMO43MG51ZEQNBUIK1TR|TRFN">
    ...
    <node>
      <id>10|0AS3BVZ9EZ8FTMO43MG51ZEQNBUIK1TR|TRFN</id>
      <sapRuleID>10</sapRuleID>
      <type>ROUTINE</type>
    </node>
    ...
</parent>


FORMULA

Formula



XML
<parent xsi:type="Transformation" id="040NBOYZ8FSDV2BRX5WAGC5KWAVETXSG|TRFN">
    ...
    <node>
      <id>9|040NBOYZ8FSDV2BRX5WAGC5KWAVETXSG|TRFN</id>
      <sapRuleID>9</sapRuleID>
      <type>FORMULA</type>
      <formula> SYST-DATUM * 2</formula>
    </node>
    ...
</parent>

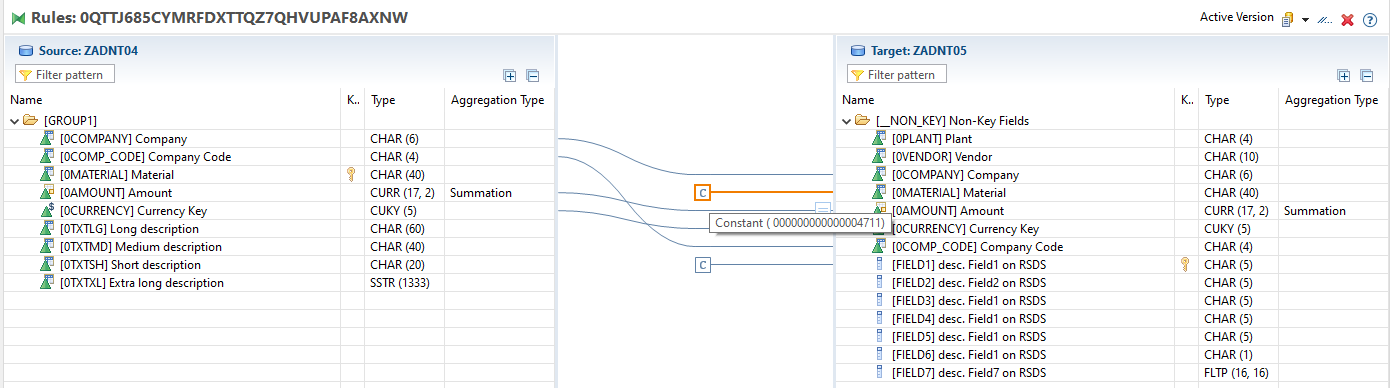

CONSTANT

Constant


XML
<parent xsi:type="Transformation" id="0QTTJ685CYMRFDXTTQZ7QHVUPAF8AXNW|TRFN">
    ...
    <node>
      <id>2|0QTTJ685CYMRFDXTTQZ7QHVUPAF8AXNW|TRFN</id>
      <sapRuleID>2</sapRuleID>
      <type>CONSTANT</type>
      <value>000000000000004711</value>
    </node>
    ...
</parent>
